Commonly used P&ID (Piping and Instrumentation Diagram) symbols for heat transfer equipments. Note that they may differ slightly from one project to another.
| Air cooler |  |

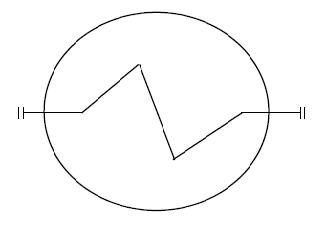

| Generic heat exchanger |  {adinserter 1} |
| Generic heat exchanger |  |

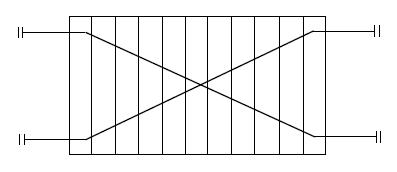

| Plate and frame heat exchanger |  |

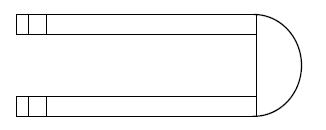

| Double pipe U tube heat exchanger |  {adinserter 1} |

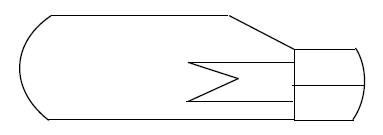

| Kettle type heat exchanger |  |

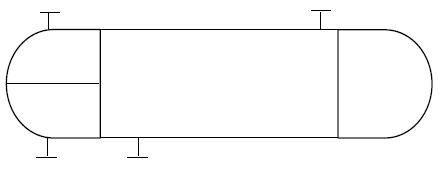

| Shell & Tube Heat Exchanger |  |
